With the HUBTEX SQ 40 reach truck, high loads can be moved
Up to
13,200lbs
load capacity
Large load
centres

Narrow
aisle width


Electric
Reach trucks
by HUBTEX

The HUBTEX reach truck is characterized by its compact design combined with a high load capacity. It comes into play whenever the load capacities of standard reach trucks from the major series manufacturers reach their limits.
With our SQ series, not only do you benefit from significantly higher load capacities with the same aisle dimensions, but also, for example, from the smallest turning circles promoted by our multidirectional steering system. This means that we can offer you the perfect solution for your “heavy” handling problem and will be by your side with all our expertise as your partner for customer-specific reach trucks.

High load capacities with compact dimensions

Mass-produced reach trucks reach their limits with load capacities greater than 5,500 lbs. This is the case at Carl Schlenk AG, where materials weighing up to 8,800 lbs need to be transported. In the search for a new reach truck, the company was faced with the challenge of finding a truck that had the same dimensions as conventional reach trucks but with a 3,300 lbs greater load capacity. The result of the search is the SQ 40 electric reach truck from HUBTEX: This vehicle combines a higher load capacity with an overall width of 51" and an overall length of 113". Thanks to the benefits of the SQ 40, loading and stacking will be able to be carried out more safely at Carl Schlenk AG in the future, making optimum use of the limited space available.

Individual manufacturing options

HUBTEX lift trucks are as flexible and individual as

the requirements of our customers. In addition to the compact SQ series, this range also includes a heavy-duty version and a multidirectional version. Among other things, this makes it possible, for example, to efficiently transport large weights with particularly compact load dimensions. This diversity of variants makes it possible to exploit the synergies in the areas of development, production and procurement to the benefit of the customer. Numerous customers, such as those in the tire industry, already rely on HUBTEX vehicles. But customers involved in the handling of heavy loads can also be convinced by our reach trucks. This is why it is already being used in the handling of metals, coils and reels.

Features of the Reach Truck

Reach truck Cab
The vehicle cab is adapted to the driver.

Our perfectly thought-out, comfortable driver's cab offers the best all-round visibility, a non-slip floor covering and unrestricted legroom. The operational controls are clearly arranged, which reduces the training period for new drivers. The cab has vibration damping and the sprung, multi-adjustable comfort seat ensures fatigue-free, quiet working and protects the driver's health (intervertebral disks).

Reach truck Lift mast
The HUBTEX reach truck with raised load.

Our stable and strong lift masts produced in-house score with internal, protected hydraulics and high residual capacity. For the safe and efficient handling of loads, HUBTEX manufactures various lift masts and fork carriages in line with customer specifications. Optional attachments are available such as telescopic forks, side shifters, rotators, lifting mandrels.

Reach truck Control

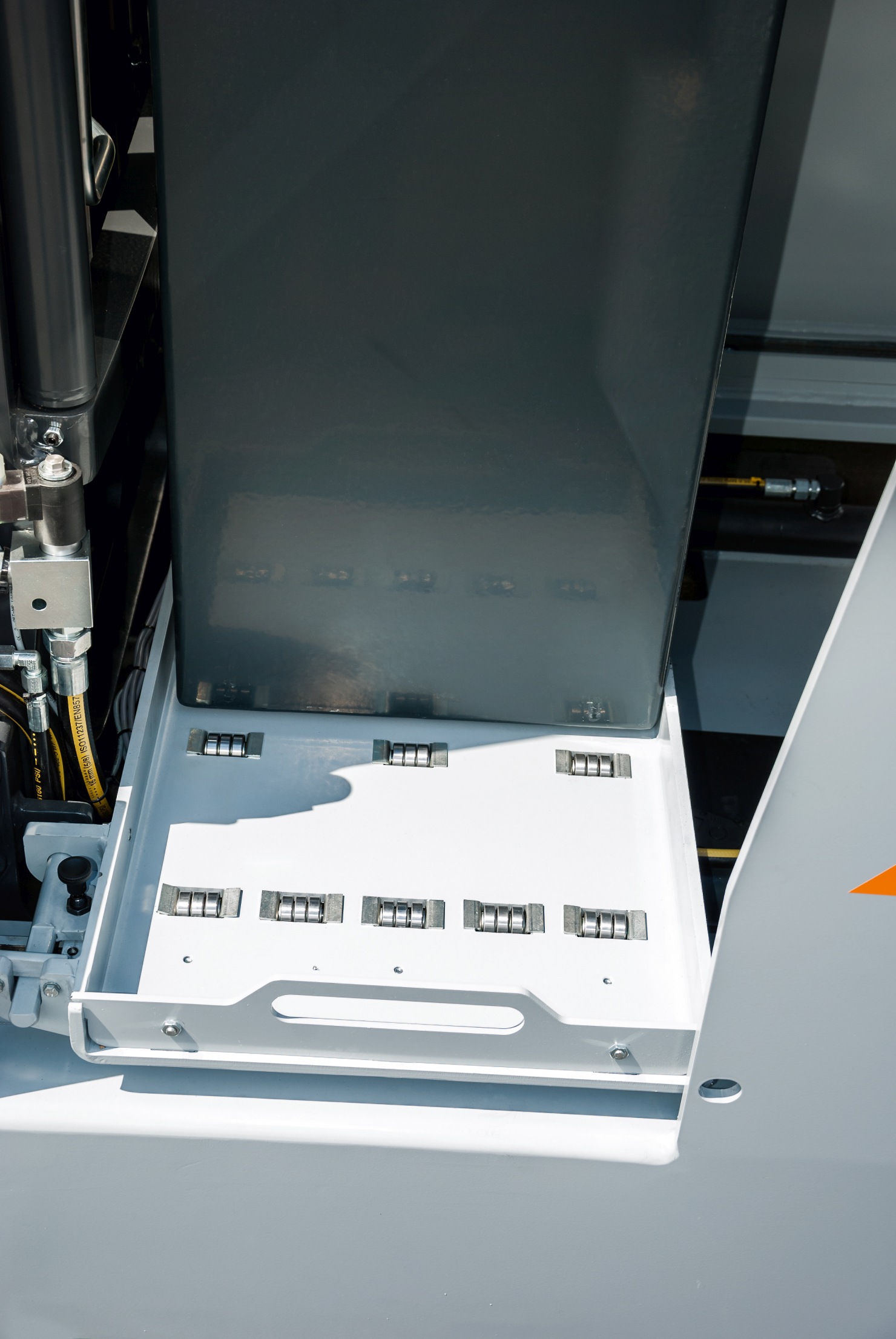

The fourway reach trucks have an electric drive.

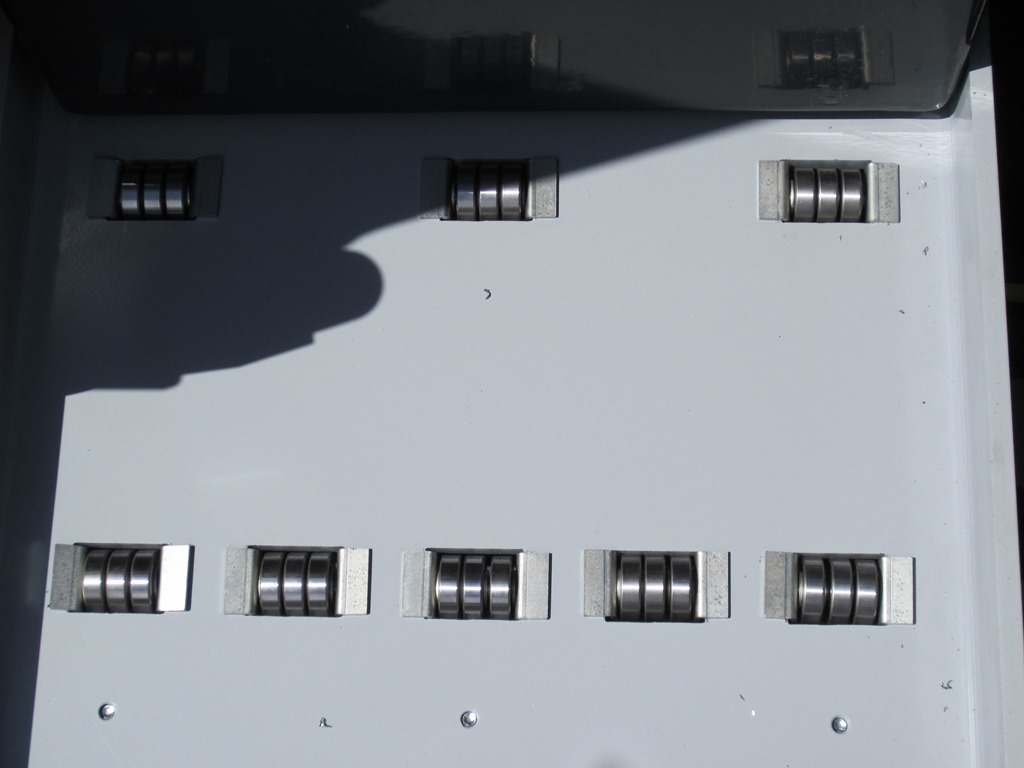

The batteries of the forklift trucks can be easily exchanged.

Clearly arranged operational controls and the simplest operation facilitate easy handling of our reach trucks. All hydraulic functions and the direction of travel are sensitively and precisely controlled via fingertips or the multifunctional joystick.
Desired movements such as lifting, lowering, mast reach, fork tilt and fork positioning can be quickly and safely activated without having to constantly change grip. Furthermore, modern control technology with energy recovery extends the service life and handling capacity of the reach truck with the same battery capacity.

We know your best solution.

We know that handling heavy loads in confined spaces presents users with special challenges. Arrange a non-binding consultation appointment with our specialists to obtain the best possible solution for your application.

The reach truck has high load capacities with a compact design.

Even with large load centers, high load capacities can be achieved with this reach truck.

The reach trucks have been designed for indoor use and outdoor use.

The reach trucks have been designed for indoor use and outdoor use.

The SQ reach truck transports two copper coils on one pallet

The SQ reach truck transports two copper coils on one pallet.

A reach truck handles palletized goods in a warehouse.

A reach truck handles palletized goods in a warehouse.

HUBTEX reach trucks are equipped with ergonomic cab fittings

HUBTEX reach trucks are equipped with ergonomic cab fittings.

Hubtex reach truck is transporting a coil

HUBTEX reach trucks can carry high loads up to 6 tons capacity.

The HUBTEX reach truck handles a copper coil in outdoor use.

The HUBTEX reach truck handles a copper coil in outdoor use.

HUBTEX reach trucks are used in various industries, here in the automotive industry

HUBTEX reach trucks are used in various industries, here in the automotive industry.

The reach truck drives under the rack of cheese wheels and picks it up on the forks

The reach truck drives under the rack of cheese wheels and picks it up on the forks.

Technical Data

Series 4125

Load capacity 8,800 lbs

Fork length 47,2 in

Lift height up to 295 in

Frame width (b1) 51 in

Frame length 57 in

PU- tires

Transverse seat

Special

Load capacity 13,200 lbs

Fork length: on request

Lift height: on request

Frame width: on request

Frame length: on request

PU- tires

Transverse seat

FREQUENTLY ASKED QUESTIONS

HERE YOU WILL FIND ANSWERS TO THE MOST FREQUENTLY ASKED QUESTIONS

How does the HUBTEX reach truck differ from serially produced reach trucks?

The vehicles are particularly suitable for companies where the transport requirements increase due to particularly heavy and bulky loads. Conventional reach trucks quickly reach their limits with high payloads of more than 6,600 lbs. The HUBTEX reach trucks have the same dimensions as mass-produced reach trucks - but at the same time offer a significantly higher load capacity with particularly large load centres. The compact reach truck from HUBTEX is the right solution, especially for companies where the material flow has to be reorganized in confined spaces. This is because the trucks can also be used with constant working aisle widths. HUBTEX has equipped the reach trucks with an energy-efficient control system of the latest generation, which enables the truck to achieve maximum handling performance with its particularly long battery life.

Does HUBTEX also sell reach trucks for special purposes, such as heavy-duty electric reach trucks or multidirectional heavy-duty electric reach trucks?

As it happens, this is precisely HUBTEX’s strength and core area of expertise. With our reach trucks, we offer users load capacities of up to 6 t – while keeping dimensions as small as possible. The vehicles are ideal for companies that are facing ever-tougher transportation requirements due to particularly heavy and bulky loads while also having to reorganize their material flows in a tight space. As well as the compact SQ series, we also have a heavy-duty version of our reach trucks. Needless to say, this is also available with multidirectional steering.

Stacking cheeses with the aid of the HUBTEX multidirectional sideloader

All HUBTEX multidirectional sideloaders can be individually adapted to customer wishes, such as here in cheese manufacture.

HUBTEX stacker in use at Continental Brazil

HUBTEX has the right vehicle for every application – such as here at Continental in Brazil.

Reach truck handling plastic

Reach trucks with small turning radii and small vehicle dimensions also score well in the plastics industry.

HUBTEX reach truck operating in the tire industry

HUBTEX reach trucks can be used to transport a wide variety of tools in the tire industry.

Can HUBTEX reach trucks be adapted to the specific requirements of the customer via options?

Thanks to the modular system with its many options, the forklifts can already be adapted to most of our customers' needs. If no suitable solution can be found, we are even able to produce one-offs for our customers due to our individual production possibilities. In this case, we integrate our development into the concept and offer phase and plan an individual vehicle concept that is perfectly tailored to the respective application.

To what extent are your reach trucks integrated in Industry 4.0 environments, what tasks do the trucks handle automatically there and where do they reach their limits?

Our reach trucks are always interesting when mass-produced reach trucks reach their limits. These are usually special applications where compact vehicle dimensions and particularly high load capacities are required at the same time. In the overall market, our reach trucks are therefore more of a niche product. Accordingly, it is rare for customers to ask us for fully automated reach trucks. Nevertheless, we have been working for years on the further development of our extensive range of assistance systems, with which we are also advancing the subject of automation. This means that we can use all our industry 4.0-compatible solutions in the vehicles via the HUBTEX Information Terminal (HIT 3).

Kabine des NexX Mehrwegestaplers

What developments do you expect in the short and medium term for reach trucks?

An ongoing issue for all manufacturers is the energy efficiency of vehicles. In the coming years, higher engine and battery system performance capacities will be in particular demand here. This makes investment in vehicles with lithium-ion batteries interesting for applications with a medium number of operating hours.
Another trend is that the boundaries between vehicles and peripheral systems such as warehouse management are becoming increasingly blurred with the possibilities offered by the Internet of Things. Already today, intelligent operating units, such as the HUBTEX Information Terminal, can generate countless advantages.
