fourway sideloader

EASY
by HUBTEX

In case of short operating times or multiple drivers, it often requires a fourway sideloader which is easy to operate and inexpensive to purchase. At the same time, the driver must be able to enter and exit the cab quickly. All of these criteria are fulfilled by the new EASY fourway sideloader from HUBTEX for the transport of long goods up to 4,400 lbs.

Everything EASY

The EASY is intended as a fourway sideloader for simple indoor applications. It was deliberately designed as a low-cost sideloader with reduced equipment options. The EASY has a load capacity of up to 4,400 lbs and its 4-wheel chassis is driven by one drive motor. Three wheels have a synchronized steering system to deliver HUBTEX’s multidirectional steering for longitudinal, transverse and circular travel. The fourway sideloader is ideal for handling profiles in the aluminum or plastics industry, for window manufacturers or in retail and is intended for operating times of 3–4 hours per day, working indoors with good floor conditions.

On video:

Our EASY in action. The focus here is on the integrated multidirectional steering system with longitudinal and lateral travel as well as circular drive for the smallest turning radius.

Features

Standup cab

Interior view of the controls of the HUBTEX EASY industrial truck

The standup cab in the EASY fourway sideloader offers outstanding all-round visibility and a low entrance. The operational controls are clearly arranged. The hydraulic functions are controlled by individual levers. The installation of complex control and pump technology was consciously omitted.

Lift mast

HUBTEX EASY multidirectional sideloader rear view

Two lift mast variants are available for the EASY fourway sideloader. A 2-stage Simplex lift mast with a lift height of 196 in and a 3-stage Triplex lift mast with a lift height of 240 in.

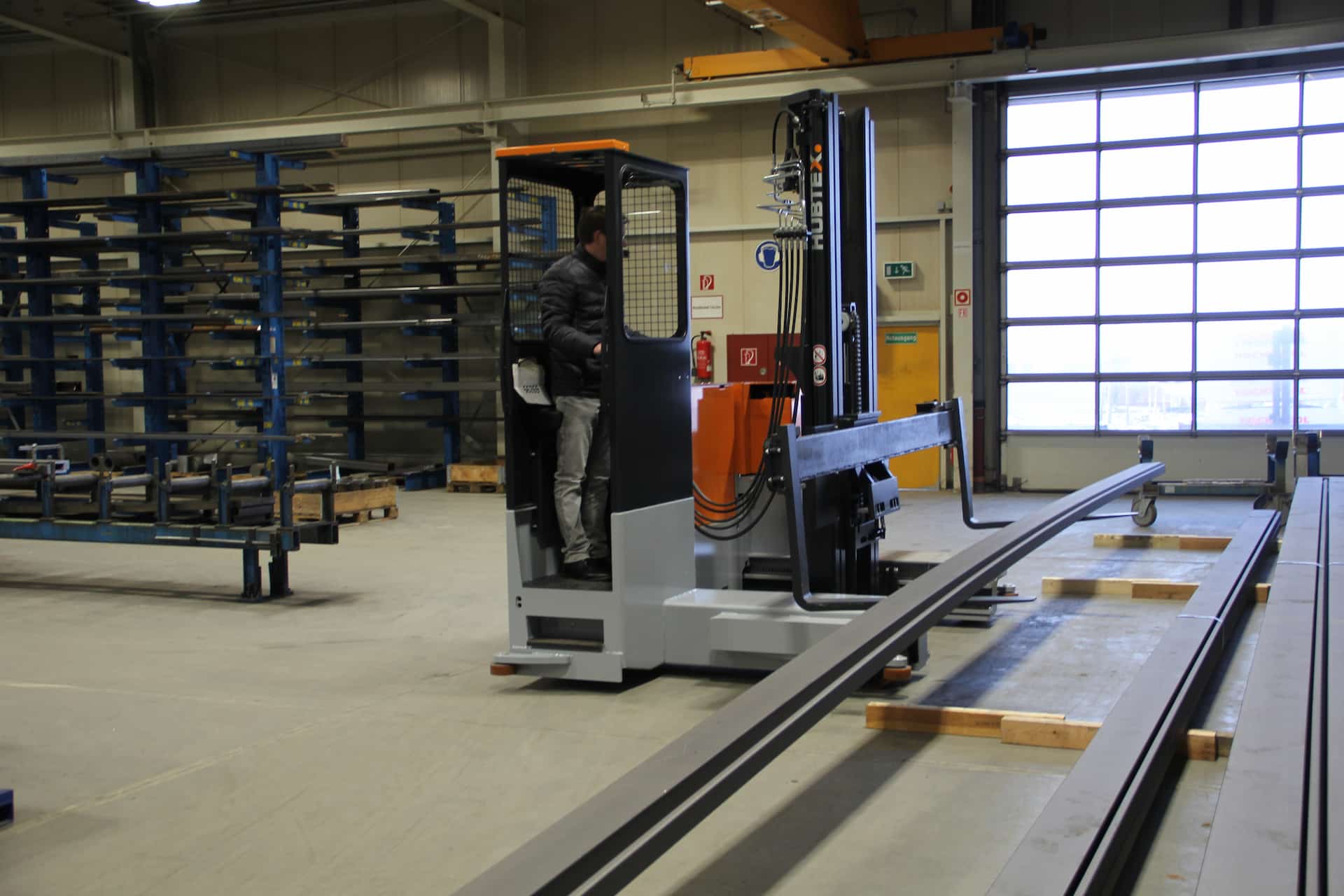

Fork carriage

For the EASY, a type 2 fork carriage for long goods is available as standard, optionally with a hydraulic fork adjusting device.

Four-wheel chassis

Load frame of the HUBTEX EASY multidirectional sideloader

Level compensation of the HUBTEX EASY multidirectional sideloader

The 4-wheel chassis has a vertical motor and a caster (under the cab) as well as 2 double load wheels on the load side. The rigid frame is designed for good floor conditions in indoor use. Three wheels have a synchronized steering system, to ensure longitudinal, transverse and circular travel. With a front dimension of 31 in, three different effective widths are available for the EASY at 31, 39 and 47 in.

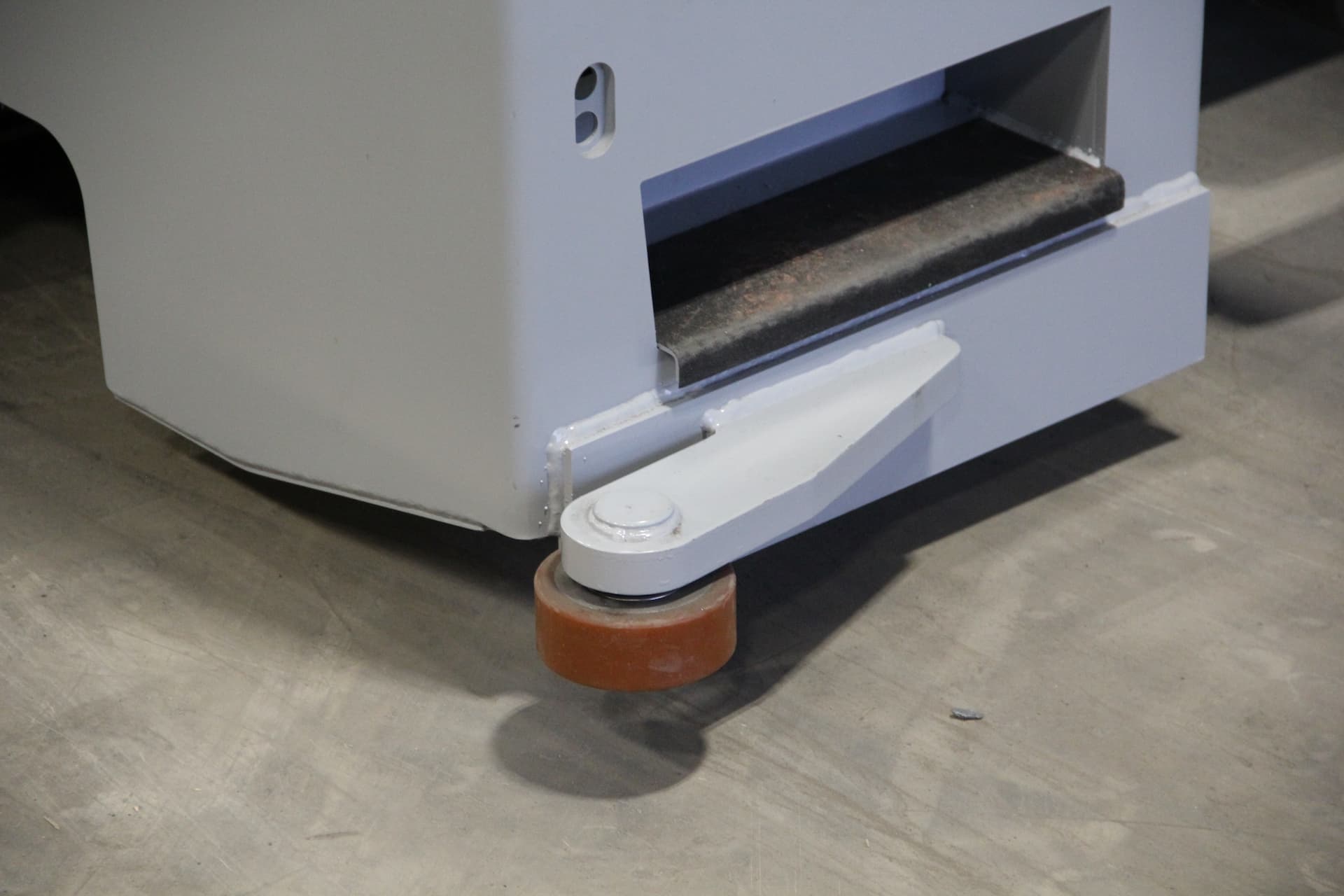

Guide rollers

With a front dimension of just 31 in, it can be used in narrow aisles. Guide rollers can be fitted if required. These are provided as standard components and individually welded on at the appropriate guide roller dimensions.

Batteries

Two battery sizes are available for the EASY sideloaders. Depending on the application requirements, a 48 V battery with 465 or 620 Ah is available.

The EASY has a maximum load capacity of 2 tons.

The vehicle is ideal for handling profiles in the aluminum or plastics industries, for example.

HUBTEX EASY lifting long goods with the fork carriage for long goods

The three wheels have a synchronized steering system to deliver HUBTEX’s multidirectional steering for longitudinal, transverse and circular travel.

The fourway sideloader is designed for operating times of 3 - 4 hours per day, working indoors with good floor conditions.

HUBTEX EASY multidirectional sideloader picking up a sheet

The salient feature of the EASY is its simple operating concept. It was designed without complex pump and control technology. This makes the fourway vehicle easy to maintain.
