HUBTEX Transporter M150
Up to
35t
load capacity
Up to
14m
lift height
Adaptable
to all
applications

Electric multidirectional sideloader

BY HUBTEX

The electric multidirectional sideloaders from HUBTEX convince with their energy-efficient, low-noise and powerful electric drive. The 360° all-round visibility provided by the electric multidirectional sideloader ensures safe handling of glass packs with load capacities of up to 20 tons. The sensitive control of all travel and lift mast movements enables the exact positioning of the vehicle and also helps to prevent glass breakage. The patented HUBTEX multidirectional steering system also increases the warehouse capacity, as the electric multidirectional sideloaders can also be used in narrow aisles.

No multidirectional sideloader is more maneuverable

With the HX multidirectional steering system, HUBTEX is setting innovative standards for its core electric multidirectional sideloader product. Using the optionally available steering system enables the trucks to change from longitudinal to transverse drive without stopping . This lessens the time needed to switch wheels, provides excellent maneuverability and reduces wear on the wheels.

Remote maintenance

A remote maintenance system is available for most HUBTEX electric multidirectional sideloaders. The IoT solution transfers important vehicle data, such as fault codes and battery charge status, to a cloud. In the event of a sideloader malfunction, HUBTEX engineers access the truck’s data directly and provide fast assistance. Users benefit from maximum machine availability and minimized production downtime. Retrofitting on used vehicles is also possible.

Features

Task and load profile for M150 electric multidirectional sideloader
HUBTEX multidirectional sideloader picking up glass
The HUBTEX M150 shelf support in use in the glass industry
the HUBTEX M150 with glass stillage handling the load
the HUBTEX multidirectional sideloader with stillage for carrying glass

The HUBTEX M150 electric multidirectional sideloader transports individual glass sheets or complete glass packs weighing up to 20 tons. The M150 is used to handle jumbo size glass (PLF). At the customer’s request, the load handling attachment can be adapted to individual glass pack dimensions.

Task and load profile for M90 electric multidirectional sideloader
HUBTEX M90 multidirectional sideloader with lift stillage for glass transport
HUBTEX M90 multidirectional sideloader with lift stillage for glass transport in the hall
HUBTEX multidirectional sideloader transporting glass stillages in the warehouse
HUBTEX multidirectional sideloader picking up glass
HUBTEX multidirectional sideloader for lifting glass loads with platform

The HUBTEX M90 electric multidirectional sideloader transports individual glass sheets weighing up to 0.5 tons and glass packs up to 9 tons. The M90 is configured to handle LES and split-LES glass dimensions, both either unpacked or packed in wooden end caps. Different glass pack dimensions may be transported due to the glass handling attachment which has multiple adjustments. For this reason, it is also possible to handle jumbo glass packs as an option.

Customized vehicles for special applications
The HUBTEX M150 shelf support in use in the glass industry, handling the load
the HUBTEX MQ 70 handling a glass stillage
the HUBTEX MQ 80 multidirectional sideloader handling glass crates
Rotating device for glass transport on a HUBTEX multidirectional sideloader
A HUBTEX M80 multidirectional sideloader loaded with a container

Depending on your requirements, we will develop an individual glass transport system for you that is precisely tailored to your application.

Single sheet handling with vacuum attachment
the vacuum attachment on the HUBTEX glass transporter system

The integrated vacuum suction cups facilitate the handling of individual sheets of glass and can be moved out of the contour of the glass frame separately or together. The suction circuit can also be controlled individually and enables a broken sheet of glass to be picked up safely.

Safety and assistance systems
the camera system for monitoring the forks when picking up loads of glass
Anti-collision scanner
Forks with sensors from HUBTEX

A comprehensive range of safety and assistance systems completes the M series. For example, camera systems, anti-collision scanners and special forks with integrated sensors are used to prevent glass breakage and to increase safety for personnel.

Operation
The M150 including platform

All main driving and hydraulic functions are controlled from a single ergonomically designed joystick developed by HUBTEX. The desired movements can be made quickly and safely without having to constantly change grip. The HIT information terminal provides information about all operating conditions of the sideloader. The multifunctional display provides the driver with all the information on the wheel position, the speed and battery status of the multidirectional loader in a clear graphic display.

Tire equipment

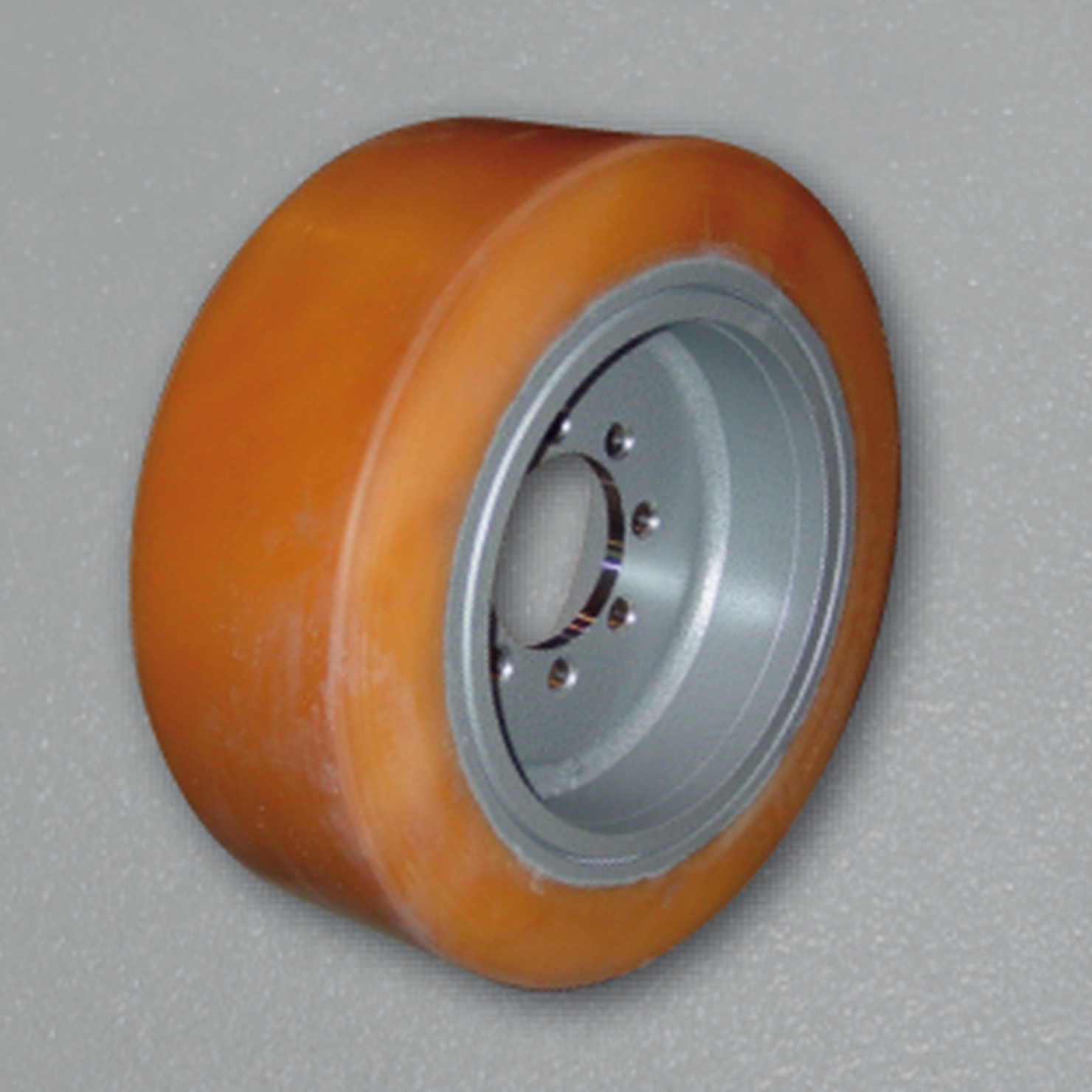

Polyurethane tires

For applications on smooth industrial floors, we use HUBTEX polyurethane tires (PU).

Battery and charging technology
Lead-acid battery from HUBTEX

Choosing the appropriate battery and charging technology is a crucial factor for energy-efficient and cost-effective operation. A wide range of different battery types and chargers is available for HUBTEX lift trucks. We first analyze your application and then recommend the appropriate battery size based on this. In addition to a wide selection of different types of lead-acid batteries, all series of our multidirectional sideloaders are also available with lithium-ion batteries.

Finding the best solution together.

We know that the handling of glass sheets and glass packages presents users with special challenges. Arrange a non-binding consultation appointment with our specialists to obtain the best possible solution for your application.

HUBTEX M series electric multidirectional sideloader handling glass

M series vehicles store glass packs on floor bearers to increase storage density and therefore raise storage capacity.

HUBTEX M series electric multidirectional sideloader in operation

The modular system for our electric multidirectional sideloader offers many variants.

HUBTEX MQ70 handling a glass stillage

Individually, we can respond to the most varied wishes and requirements of our customers, designing a stacker truck to precisely meet your needs.

HUBTEX M series electric multidirectional sideloaders

Almost all the features of the HUBTEX electric multidirectional sideloader can be flexibly adapted to the application requirements.

HUBTEX multidirectional sideloader picking up glass
The electric multidirectional sideloader handling glass stillages

Glass sheets are often stored on A or L stillages for easier transport.

TECHNICAL DATA

Type description Type Series Load capacity (t) Load handling Tire equipment Engine
Electric-Multi-Directional
Sideloader
M 30 2130 up to 3 Vacuum  PU/EL Electric
M 40 2130 up to 4
M 60 2130/2131/2132 up to 6
M 70 2131/2132 up to 7
M 75 2131/2132 up to 7,5
M 85 2131/2132 up to 8,5
M 90 2131/2132 up to 9
M 150 2134 up to 15
